New Kodak Scan Station Pro 550 Network Scanner

Product Brochure

KODAK Scan Station Pro 550 is a simplified one touch solution that automates data and transaction capture to feed your business process. It will provide the ability to be tailored to fit specific job requirements so that it will scan documents, extract key indexing information, enhance selected images, and forward the document image and metadata to a designated repository or business application, all with the push of a single button.

• Automatically capture transactional documents and data, and kick off time-critical processes


• Initiate and feed a wide array of processes – accounts payable/receivable, insurance claims, storage/receiving, shipping, estimates/offers, new patient registration, patient records/updates, and many others

Technical Specifications

Connectivity 10/100 Base T

Networking TCP/IP, DHCP or static, NT domain authentication

Interfaces

Rear panel – four USB 2.0 ports, 100 Base T Ethernet port,

one custom flatbed port. Bezel – one USB 2.0 port

Dimensions Depth: 38.1 cm (15 in.); Width: 34.9 cm (13.8 in.); Height: 20.8 cm (8.2 in.)

Feeder Up to 75 sheets

To order this scanner, call us at (212) 779-0800

Kofax Express 2.5 | Released

Kofax released the Kofax Express 2.5. This latest release of Express includes significant advances in indexing and administration.

Zonal OCRKofax Express automatically extracts index field data from documents. Users can train Kofax Express to locate the key index information in a document and Kofax Express will automatically remember that location and extract the data from future documents, which reduces the time it takes to process documents and makes indexing much easier for users.

Rubber Band IndexingKofax Express users can now easily index documents by selecting the text in the document with their mouse. Kofax Express automatically populates the index field with the information highlighted by the user, saving keystrokes and making the indexing of documents faster and easier.

Integration with Microsoft SharePoint and Other SystemsTight integration with Microsoft SharePoint enables Kofax Express to index, classify and deliver documents and data into SharePoint for easy and fast retrieval. Kofax Express also supports direct integration with Kofax Capture and provides an export API for custom or advanced export use cases.

To order call us at 212-779-0800

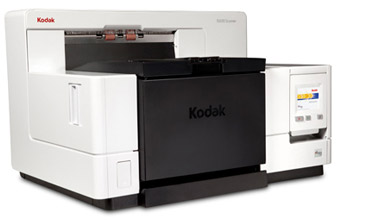

New Kodak i5600 Scanner

The KODAK i5000 Series Scanners will help enterprise and service bureau organizations increase their production level capture performance through optimized accuracy and automated functionality—resulting in an impressive total cost of ownership. Designed for the most diverse job streams within high-volume document environments, these new scanners provide more usable information in black and white, color or dual stream at rated speeds to digital mail rooms and document processing operations found within financial, insurance, legal and government organizations.




The i5000 Series Scanners support key customer priorities to feed more accurate information and images into a business process for action or archiving at rated speeds. Greater automation is provided through programmable function keys for job customization, requiring less operator interaction with the host. The i5000 Series Scanners have advanced capabilities in equipment intelligence, including memory optimization for increased processing power and better optical resolution capture without sub-sampling or simple interpolation of dpi to better enable Intelligent Document Recognition (IDR) and improved data extraction. Overall, the scanners’ image processing and paper handling improvements, including streak filtering and controlled stacking, greatly reduce re-scans and sorting to provide enhanced productivity.


Specifications for Kodak i5600
Throughput: 170 ppm
Recommended Daily Volume: No limit with i5000 Series Scanners
Scanning Technology: CCD
Optical Resolution: 600 dpi
Output resolution: 100 / 150 / 200 / 240 / 300 / 400 / 600 dpi
Illumination: White LEDs
Maximum Document: Width 304.8 mm (12˝)
Long Document Mode Length Up to 4.8m (189˝)
Minimum Document Size 63.5 mm x 63.5 mm (2.5˝ x 2.5˝)
Paper Thickness and Weight With standard feeder: 45 g/m2 (12 lb.) bond to 200 g/m2 (110 lb.) index
With ultra-lightweight feeder accessory: 25 g/m2 (7 lb.) rice paper to 75 g/m2 (20 lb.) bond
Feeder/Elevator: Automatic 750-sheet elevator design; automatic document feeder with four settings: continuous feed, 100-sheet, 250-sheet, 500-sheet and full 750-sheet batches
Multi-feed Detection: 5 independent ultrasonic zones
Connectivity: USB 2.0
Interface Support: TWAIN, ISIS and WIA drivers, Kofax certified
Features in the Scanner Perfect Page Technology, streak filter, controlled stacking, iThresholding, automatic color detection, autocrop, aggressive crop, deskew, content-based blank page detection and deletion, multi-color dropout, dual-stream scanning, automatic orientation now with defaults, color on the fly toggle patch, operator overrides
Output Compression: CCITT Group IV; JPEG or uncompressed output
Electrical Requirements: 100-240 V (international), 50/60 Hz
Power Consumption Sleep Mode: < 4 watts; Running: 215 watts; Standby: <1.0 watt
Environmental Factors 2009 Energy Star qualified scanners, 2008 EuP, proposed 2013 EuP
Acoustical Noise Sound Power Level: Operating < 70 dB; off mode or ready mode < than 54 dB
Recommended PC Configuration Microsoft Windows XP – P3 1 GHz, 1 GB RAM, USB 2.0; Microsoft VISTA – P4 1 GHz, 1 GB RAM, USB 2.0;
Microsoft Windows 7 – P4 1 GHz, 2 GB RAM, USB 2.0
Supported Operating Systems Microsoft Windows XP (32- and 64-bit);
Microsoft Windows Vista (32- and 64-bit); Microsoft Windows 7 (32- and 64-bit)
Consumables Available Feeder consumables kits, imaging guide set, printer ink cartridge and carrier, transport cleaning sheets, roller cleaning pads, printer ink blotters, Staticide Wipes, switchable black/white background
Accessories/Options Enhanced Printer Accessory for Kodak Scanners, i5200 to i5600 upgrade, manual feed shelf, Document Extenders 66.04 cm, 76.02 cm and 86.36 cm (26˝, 30˝ and 34˝)
Dimensions Height: 43.4 cm (17.1˝); Width: 69.3 cm (27.3˝); Depth: 51 cm (20.1˝) with tray closed, 65.3 cm (25.7˝) with tray open
Weight 57.6 kg (127 lbs.)

Call us at :(212) 779-0800 or visit our website http://www.1strunshoponline.com

New Kodak i5200 Scanner

Beyond smart lies brilliant: a revolution in document imaging intelligence, only from Kodak

Kodak – the high-volume market leader – delivers brilliant, never-before-possible advantages for your enterprise with Kodak i5000 Series Scanners.

Breakthrough digital architecture offers logic and programmability delivering advantages for today and tomorrow – including optimized memory allocation and processing paths, and customization capabilities for your job streams

Load any mix of diverse documents and your i5000 Series Scanner will find the fastest way to scan, perform imaging functions, extract data and neatly stack originals.


Best-in-class total cost of ownership/performance
Process and manage more data per dollar – up to 33% more accurately – than select competitors, even with all imaging features enabled*.

Give your documents the intelligence they deserve
Greatly increase processing volume and accuracy to make informed decisions faster, speed up a business process, and deliver better customer service. It’s intelligence and power for your documents and enterprise, designed for less human interaction from feeding, through imaging, to stacking.

No lag, full-rated speed of 140 ppm with all imaging features enabled.

Upgrade without additional hardware purchases
Field upgradable versatility and savings – transform a Kodak i5200 Scanner to Kodak i5600 Scanner specs and performance as volumes grow.

Single component, touchscreen panel efficiency
Make repeated and complex functions one-button easy – simplify tasks, according to common job orders, with programmable function keys to minimize human interaction while improving accuracy and processing times

Wide-angle viewing with two ergonomically correct positions – vibrant, full-color touch screen

Call us at :(212) 779-0800 or visit our website http://www.1strunshoponline.com
